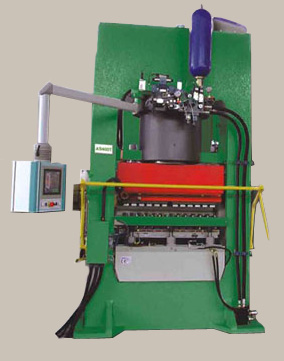

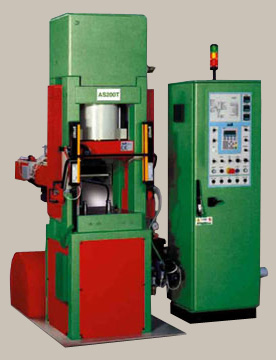

AS200T PRESS
FOR LABORATORY
AND SPECIAL ITEMS

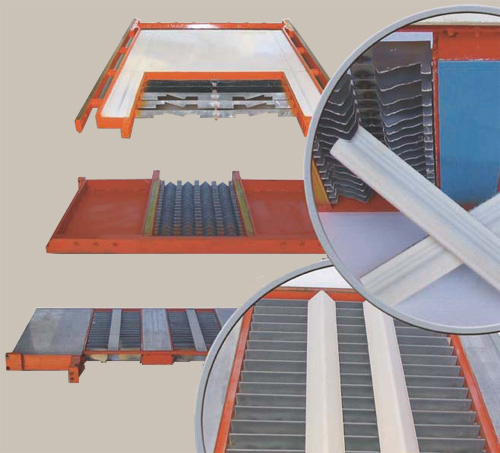

All AS presses are equipped with
multi-size dies offering very easy and
simple solutions for quick size change
without removing the die from the
press.

TECHNICAL CHARACTERISTICS
Max pressing force 200t
Max shaiking out force 9,5t
Pressione dell’olio nel circuito 120bar
Oil pressure in the main cylinder 350bar
Free space among the columns 500mm
Free space between crosspiece and table plate 470mm
Max crosspiece stroke 180mm
Aprox. press total weight 2500kg
Installed electric power die - frame 7,5kw
Installed electric power heating die 2kw
Total height from plane “O” 2700mm
